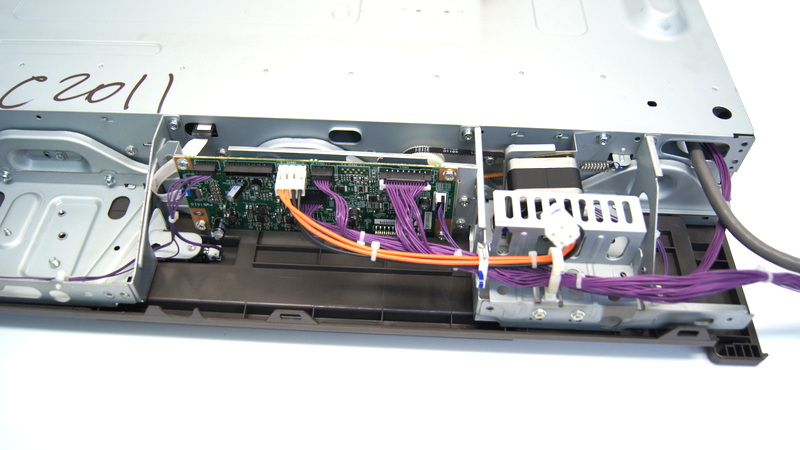

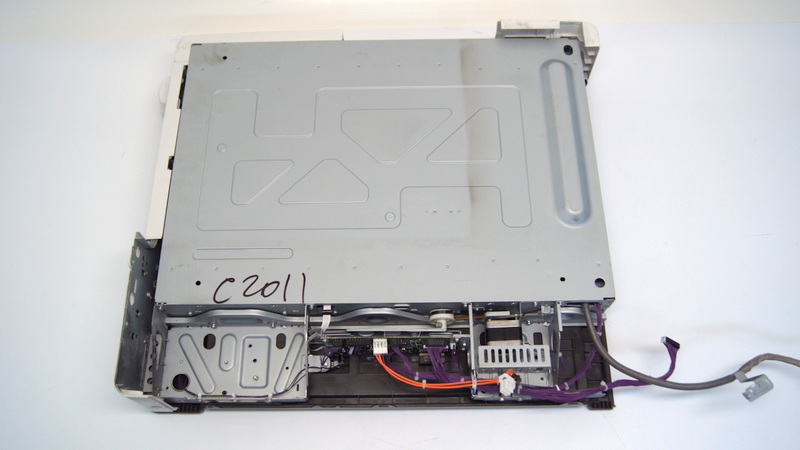

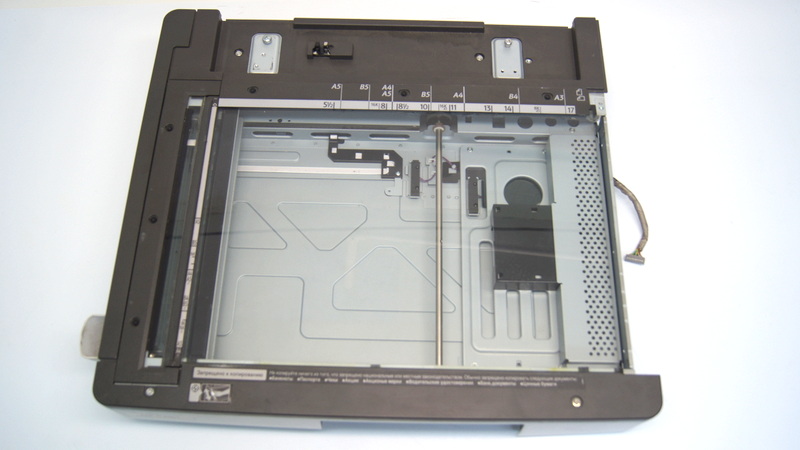

Блок сканера D1491771 для Ricoh MP C2011SP/ C2503SP/ C2003SP

Состоит из:

1 D1491800 COVER:SHEET THROUGH:DOCUMENT FEEDER
2 D1471805 EXPOSURE GLASS:DOCUMENT FEEDER:APPLY
3 D1491801 BRACKET:SCALE:LEFT
4 AW020207 PHOTOI NTERRUPTOR:FLAT:PICH2MM:M4
5 D1491792 SCALE LEFTOOMIEU ASSY (for EU AA KORfTW NICHN)
5 D1491793 SCALE:LEFT:NA:ASSY (for NA)
6 AW020214 PHOTOINTERRUPTOR: LG248NL1A
7 G5701225 SHIELDING PLATE:HOME POSITION SENSOR
8 D1495202 HARNESS:SIO:SENSOR
9 D1491795 SCALE:REAR:PRINTING
10 A2501752 EXPOSURE GLASS
11 AA143537 SCREW:M3:BLACK
12 D1471750 SHEET:GAP:ASSY
13 D1491798 SEAL:SHEET THROUGH:DOCUMENT FEEDER
14 D1491804 HOLDER:EXPOSURE GLASS:SCANNER
15 D1491805 HOLDER:EXPOSURE GLASS
16 D1821815 BRACKET:DOCUMENT FEEDER:RIGHT
17 D1821816 BRACKET:DOCUMENT FEEDER:LEFT
18 D1821818 BRACKET:DOCUMENT FEEDER:CABLE

1 1491742 CARRIAGE :NO.2:SUB-ASSY
2 1491756 MIRROR:N0.2:CONCAVE:ASSY
3 G4042810 SPRING PLATE:MIRROR:N0.2
4 1491757 MIRROR:N0.3:CONVEX:ASSY
5 82381807 PULLEY
6 1491754 GUIDE:FFC:CARRIAGE:N0.2
7 1491755 COVER:FFC:CARRIAGE:NO .2
8 1491730 CARRIAGE:N0.1 :ASSY
9 1495207 HARNESS:FFC:LED
10 1491728 GUIDE :HARNESS :LED-8
11 1491721 ILLUMINATION UNIT:LE0.8:ASSY
12 AC030169 MIRROR:N0.1
13 M0261815 CLAMP:MIRROR:NO .1
14 1491726 CLAMP:DRIVE WERE
15 1491693 GUIDE:FFC
16 1491694 PLATE SEAL:APS:HARNESS
17 1491780 INNER COVER:PEEN
18 1491731 REFLECTOR:SCANNER
19 1491835 8RACKET:DEHUMIDIFlER:HEATER
20 82291687 HEATER:120V:9W
20 82291688 HEATER:230V :9W

1 D1595304 HARNESS:SIO:STM
2 D1491703 DC STEPPER MOTOR:PRESS FIT
3 D1491706 SYNCHRONOUS BELT:138ST1.5-4.0
4 82381806 PULLEY:IDLER
5 AW010155 ORIGINAL SENSOR:66MM:3.3V
6 D1825221 INTERFACE CABLE:SCANNER:LVDS:ASSY
7 D1491771 LENS:HOLDER:ASSY
8 D1495138 PCB:SIO
9 D1495206 HARNESS:SIO:SCANNER UNIT
10 D1825205 HARNESS:SIO:IMAGE PROCESSING UNIT
11 D1491710 TIMING PULLEY:62
12 D1491714 DRIVE WERE:DIA1
13 D1491717 PULLEY:DRIVE WERE:REAR
14 D0291749 PULLEY:PROTECTION
15 D1491709 TENSION SPRING:TENSION:11.3N:30MM
16 D1491715 PULLEY:DRIVE WERE:FRONT
17 D1491711 SHAFT:SCANNER:DRJVE
18 AA082144 PLAIN SHAFT BEARING:DIA8XDIA12X7
19 D1491705 BRACKET:DC STEPPER MOTOR
20 D1491719 BRACKET:TENSION: FRONT
21 D1491718 BRACKET:TENSION: REAR
22 D1491812 BRACKET:SIO:PEEN

----------------
Предназначено для работы в следующих моделях :

Ricoh MP C2003ZSP
Ricoh MP C2503ZSP
Ricoh MP C2011SP
Ricoh MP C2503SP
Ricoh MP C2003SP
Ricoh D182 MP2553
Ricoh D183 MP3053
Ricoh D184 MP3353
Ricoh MP2553
Ricoh MP3053
Ricoh MP3353

----------------
Деталь с разбора. Работоспособность проверена. Гарантия при установке в сервисном центре - неделя.
