Блок сканера 302K917230 | 302K994030 | 302N294010 для Kyocera TASKalfa 8001i/ 3051ci/ 5551ci (Код: 67176)

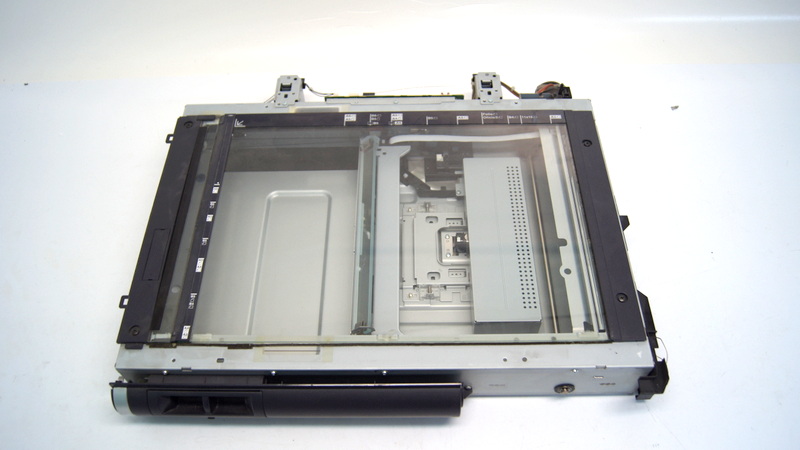

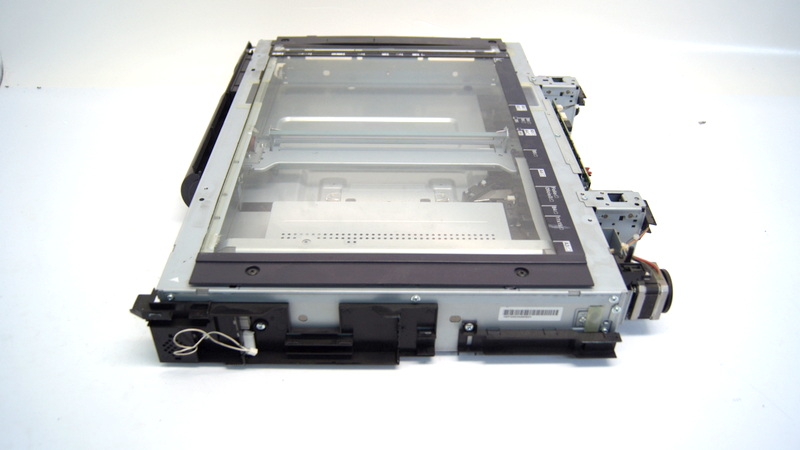

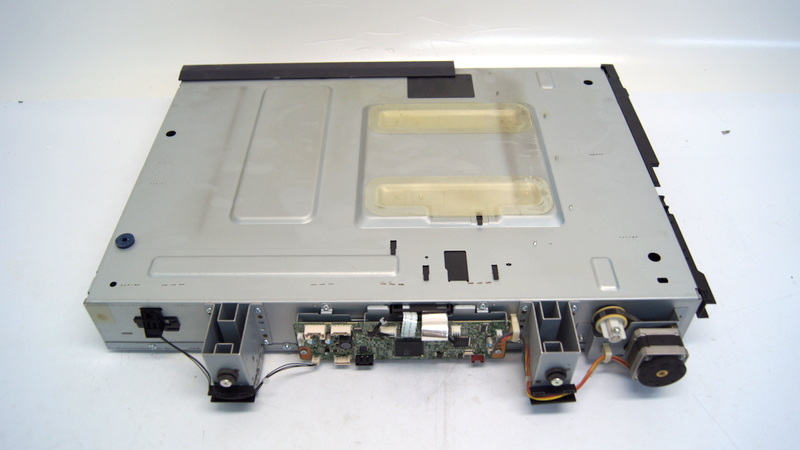

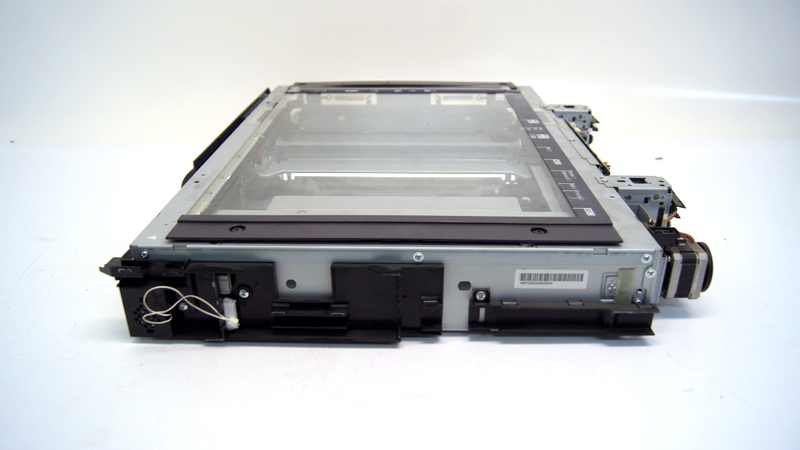

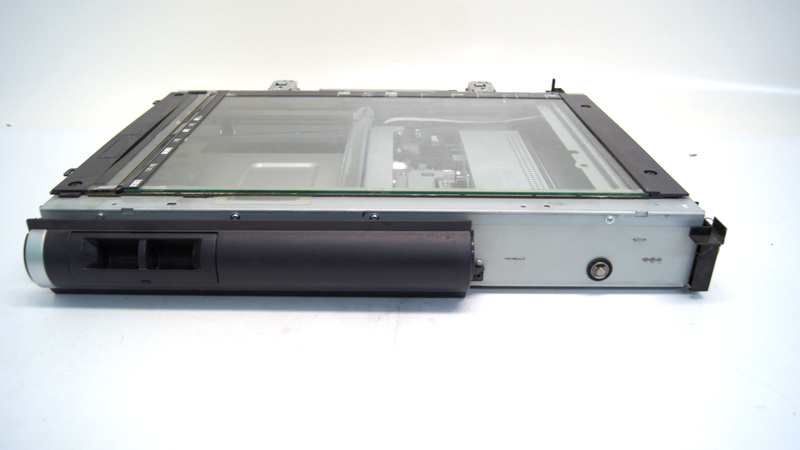

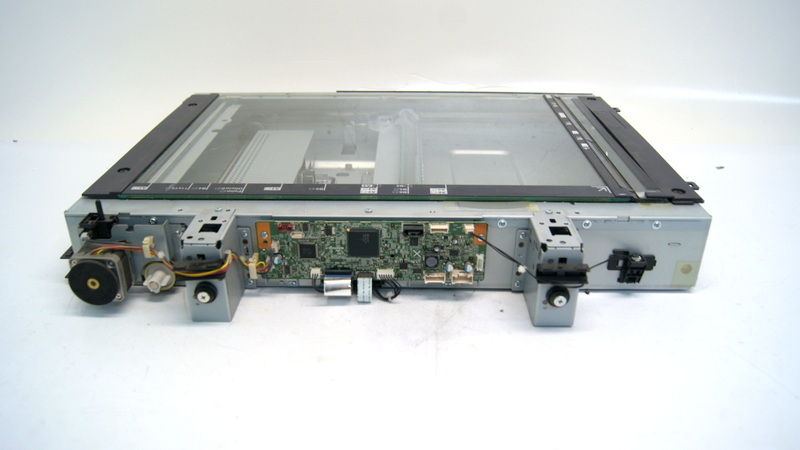

Блок сканера для Kyocera TASKalfa 8001i

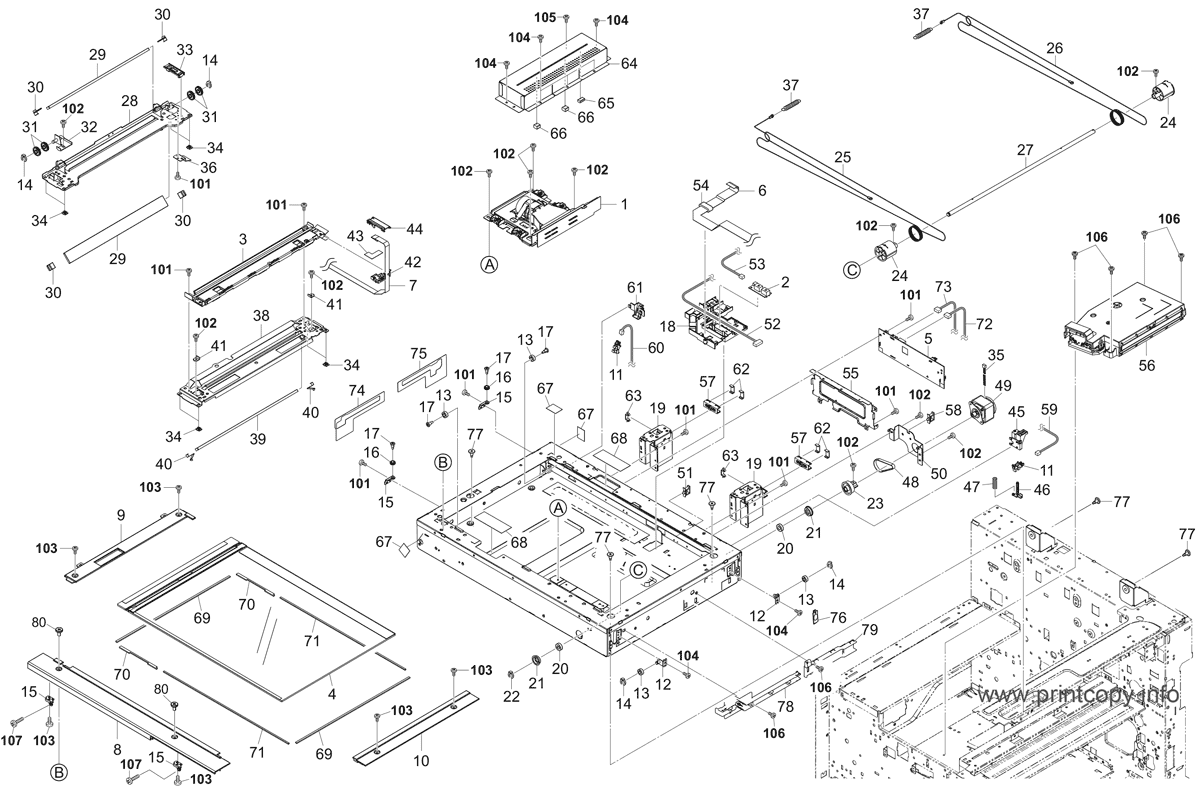

Блок состоит из:

1 302N693020 PARTS IMAGE SCANNER L SP 2N693020
2 302H044110 SENSOR ORIGINAL 2H044110
3 302N493040 PARTS MOUNT LED ASSY SP 2N493040
4 302K994030 PARTS CONTACT-GLASS ASSY(I) SP 2K994030
4 302K994040 PARTS CONTACT-GLASS ASSY(C) SP 2K994040
5 302N494201 PARTS PWB ISC ASSY SP 2N494201
6 302K946670 WIRE FFC CCD 2K946670
7 302K946710 WIRE FFC LED 2K946710
8 302K904113 COVER ISU FRONT 2K904113
9 302LC04130 COVER ISU LEFT 2LC04130
10 302LC04141 COVER ISU RIGHT 2LC04141
11 7NXGP1S173LCH01 SENSOR OPT. NX116910
12 302KK17031 MOUNT LEFT PULLEY 2KK17031
13 302H717160 PULLEY SCANNER 2H717160
14 2BC06980 STOPPER 5 2BC06980
15 302GR17861 PLATE PULLEY 2GR17861
16 302K917150 PULLEY LEFT FRAME 2K917150
17 302GR17350 PIN WIRE PULLEY B 2GR17350
18 302K917381 GUIDE WIRE ISU 2K917381
19 302N217010 MOUNT DP HINGE 2N217010
20 7BE008165431H01 BEARING 688ZZ BE119730
21 302K931960 HOLDER BEARING 688ZZ 2K931960
22 2BC06910 STOPPER 6 2BC06910
23 302K917021 PULLEY ISU Z59 2K917021
24 302H717252 DRUM PULLEY 2H717252
25 302H717381 WIRE SCANNER FRONT 2H717381
26 302H717391 WIRE SCANNER REAR 2H717391
27 302K917060 SHAFT ISU 2K917060
28 302K917091 FRAME MIRROR B 2K917091
29 2FB12180 MIRROR B 2FB12180
30 75712080 MIRROR HOLDER 75712080
31 302H017180 PULLEY SCANNER 2H017180
32 302K317830 PLATE ADJUST B 2K317830
33 302K317160 GUIDE FFC LED B 2K317160
34 2DC12230 SLIDER SCANNER 2DC12230
35 302N446240 WIRE SCANNER MOTOR 2N446240
36 302K917080 PLATE SLIT PI 2K917080
37 302C912291 SPRING SCANNER TENSION 2C912291
38 302K317062 FRAME MIRROR A 2K317062
39 302KK17320 MIRROR A 2KK17320
40 2BC12190 SPRING,MIRROR HOLDER 2BC12190
41 2C912150 RETAINER WIRE 2C912150
42 302K317172 GUIDE FFC LED C 2K317172
43 302K317791 SHEET FFC LED 2K317791
44 302K317310 GUIDE FFC LED D 2K317310
45 302K917130 MOUNT RELEASE SWITCH 2K917130
46 302K917120 SWITCH RELEASE 2K917120
47 302GR17380 SPRING RELEASE SWITCH 2GR17380
48 302K917040 BELT ISU 2K917040
49 302N294010 PARTS MOTOR ISU SP 2N294010
50 302K917030 MOUNT ISU DRIVE 2K917030
51 7YZM610003++H01 ACCESS SADDLE YZ010250
52 302K946680 WIRE CCD POWER 2K946680
53 302K946750 WIRE ORIGINAL SENSOR 2K946750
54 7YBFZZ65C001H01 FERRITE CORE YB110990
55 302K917230 MOUNT PWB 2K917230
56 302N793010 LK-6707 2N793010
57 302LF39050 GUIDE WIRE FRONT PWB 2LF39050
58 7YZM610001++H01 ACCESS SADDLE YZ010230
59 302K946730 WIRE OPEN SENSOR 2K946730
60 302K946A90 WIRE HP SENSOR 2K946A90
61 302K317330 MOUNT PI 2K317330
62 303LL02330 HOLDER WIRE D 3LL02330
63 302K931080 WIRE STOPPER 2K931080
64 302K917400 COVER ISU 2K917400
65 7ZGSSTG58014H01 SHIELD GASKET ZG128680
66 7ZG65TSV+010H01 SHIELD GASKET ZG111180
67 302H717440 SEAL FRAME SIDE B 2H717440
68 302K317660 FILM FRAME 2K317660
69 302K317650 SEAL FRAME ISU C 2K317650
70 302K317450 SEAL FRAME ISU A 2K317450
71 302K317460 SEAL FRAME ISU B 2K317460
72 302K946700 WIRE CCD DATA 2K946700
73 302K946720 WIRE ISC-MAIN 2K946720
74 302K917170 FILM FRAME SIDE F 2K917170
75 302K917180 FILM FRAME SIDE R 2K917180
76 302K917240 CAP PULLEY ISU 2K917240
77 302GR17180 PIN SCANNER RETAINING 2GR17180
78 302N239010 GUIDE WIRE USB 2N239010
79 302LC05350 GUIDE WIRE OPERATION 2LC05350
80 302N404410 PIN ISU FRONT 2N404410

----------------
Предназначено для работы в следующих моделях kyocera:

Kyocera TASKalfa 3051ci
Kyocera TASKalfa 3551ci
Kyocera TASKalfa 4551ci
Kyocera TASKalfa 5551ci
Kyocera TASKalfa 3501i
Kyocera TASKalfa 4501i
Kyocera TASKalfa 5501i
Kyocera TASKalfa 6501i
Kyocera TASKalfa 8001i
Kyocera TASKalfa 6551ci
Kyocera TASKalfa 7551ci
