ADF в сборе DADF-AB1 для Canon imageRUNNER 2520 (Код: 52000)

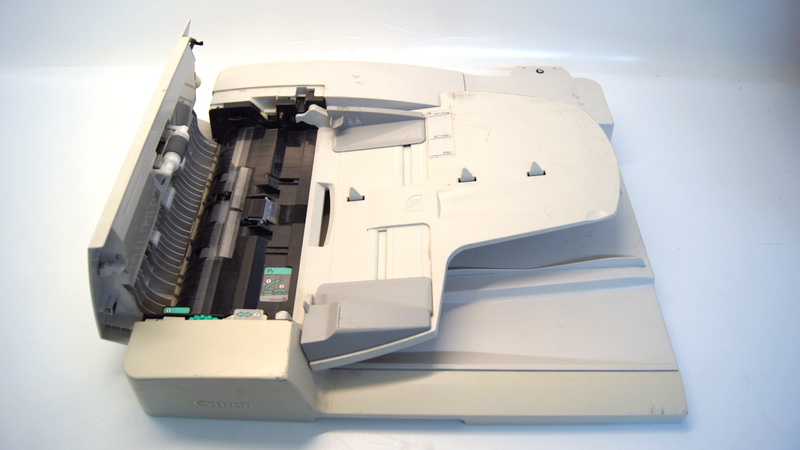

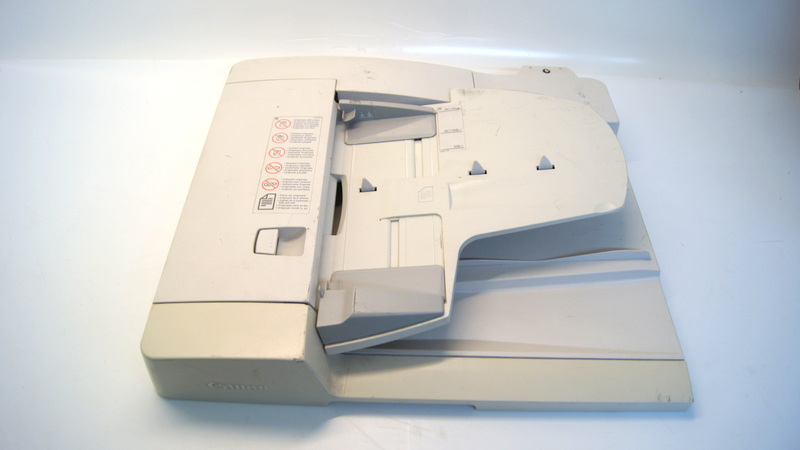

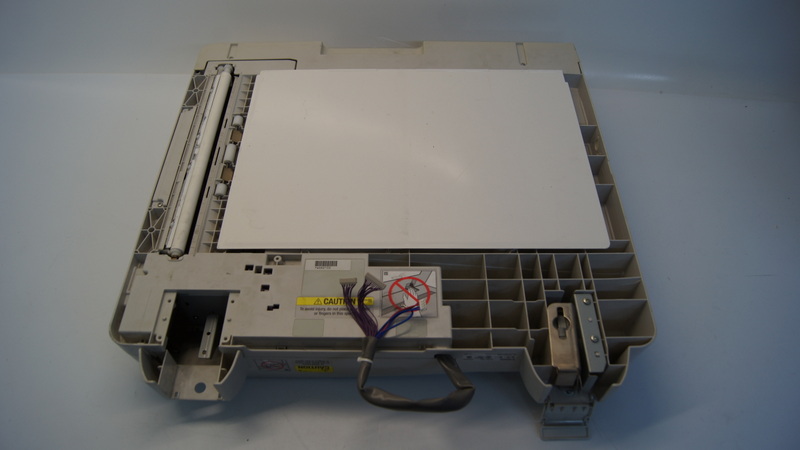

ADF в сборе DADF-AB1 для Canon imageRUNNER 2520

Состоит из:

1 FC3-1468-000 HOLDER, HARNESS, M
2 FC3-1492-000 HOLDER, TRAY SUPPORTING
3 FC3-1496-000 BRACKET, REINFORCEMENT
4 FC9-9558-000 HOLDER, FEEDER SHAFT
5 FF3-4621-000 COVER, REAR
6 FS9-0198-000 LABEL, HINGE CAUTION, C
7 FF3-4624-000 COPYBOARD
8 FL3-3238-000 COVER, FRONT
9 FS9-0203-000 LABEL, DIAL OPERATION
10 FC3-1449-000 COVER, STAMP
11 FS9-0208-000 LABEL, DOCUMENT SIZE A SIZE
11 FU7-8249-000 LABEL, DOCUMENT SIZE AB/ K/ INCH SIZE
12 FG3-4039-000 HINGE R ASSEMBLY
13 FS9-0202-000 LABEL, PROHIBITION DOCUMENT A SIZE
13 FU7-8247-000 LABEL, PROHIBITION DOCUMENT AB/ K/ INCH SIZE
14 FS2-9569-000 SCREW, M3X10
15 FS2-9571-000 SCREW, M4X12
16 FS2-9570-000 SCREW, M4X7
17 FS2-9567-000 SCREW, M3X6
18 FM4-3320-000 CABLE, INTERFACE

1 FC3-1450-000 HOLDER, DELIVERY REVERSE
2 FC3-1452-000 ARM, SOLENOID
3 FC3-1454-000 ROLLER, LEAD, LARGE
4 FC3-1455-000 ROLLER, LEAD, SMALL
5 FC3-1491-000 ARM, DELIVERY REVERSE
6 FL3-5012-000 COVER, FEED [DP]
7 FC3-1497-000 SPRING, LEAF
8 FC3-1498-000 SPRING, LEAF
9 FC5-4425-000 CLIP
10 FS9-0197-000 LABEL, HINGE CAUTION
11 FC3-1451-000 ROLLER, DELIVERY REVERSE
12 FC8-6419-000 DAMPER, DELIVERY
13 FH6-5136-000 SOLENOID SL1
14 FU6-1222-000 BUSHING, DELIVERY RELEASE
15 FS2-9568-000 SCREW, M3X8
16 FS2-9569-000 SCREW, M3X10
17 FS4-2743-000 SPRING
18 XD9-0288-000 PIN, DOWEL

1 FS4-2754-000 SPRING, TENSION
2 FC3-1477-000 LEVER, OPEN/CLOSE
3 FC3-1478-000 LEVER, SENSOR
4 FC3-1479-000 ROLLER, REGISTRATION, 1
5 FC3-1480-000 ROLLER, REGISTRATION, 2
6 FC9-9559-000 SHUTTER, FRONT
7 FC9-9560-000 SHUTTER, REAR
8 FF3-4629-000 COVER, PAPER PICK-UP AB/ K/ INCK SIZE
8 FF3-4637-000 COVER, PAPER PICK-UP EXCEPT AB/K/INCK SIZE
9 FF3-4630-000 COVER, PAPER PICK-UP BACK
10 FG3-4043-000 PAPER PICK-UP ROLLER ASSY, SS [DP]
11 FC3-1525-000 ROLLER, PICK
12 FC9-9561-000 STOPPER
13 FC5-4425-000 CLIP
14 FG3-4041-000 PICK ARM F ASSEMBLY
15 FG3-4044-000 SEPARATION ROLLER ASSEMBLY, SS
16 FG3-4045-000 PICK ARM R ASSEMBLY
17 FS2-1708-000 BUSHING
18 FS2-1710-000 BUSHING
19 FS2-9573-000 SCREW, M3X16
20 FS2-9569-000 SCREW, M3X10
21 FS4-0654-000 GEAR, 25T
22 FS4-2747-000 SPRING, COMPRESSION
23 XD9-0288-000 PIN, DOWEL
501 XD1-2100-305 WASHER,PLAIN
502 XD1-3100-305 WASHER,SPRING

1 WG8-5696-000 PHOTO INTERRUPTER,
2 FC3-1486-000 GUIDE, TRAY, FRONT
3 FC3-1488-000 LEVER, TRAY SENSOR
4 FF3-4625-000 TRAY
5 FC9-9557-000 ELIMINATOR, STATIC CHARGE
6 FF3-4626-000 GUIDE, TRAY
7 FS9-0210-000 LABEL, DOCUMENT MAXIMUM LOAD
8 FF3-4627-000 RACK
9 FF3-4628-000 COVER, TRAY BACK
10 FS4-0657-000 RACK, TRAY
11 FS4-0658-000 GEAR, 16T
12 FS2-9572-000 SCREW, M3X10
13 FM4-3611-000 CONNECTING PCB ASSEMBLY
14 FS2-9569-000 SCREW, M3X10
Fig.B13 FG3-4036-000 DOCUMENT TRAY ASSEMBLY
Fig.B10 NPN ADF ASSEMBLY DADF-AB1 MODEL

1 FC3-1460-000 GUIDE, PAPER FEED
2 FC3-1462-000 GUIDE, PLATEN, 2
3 FF3-4638-000 FLAPPER
4 FC3-1465-000 LEVER, LEAD SENSOR
5 FC3-1466-000 LEVER, DELIVERY REVERSE SENSOR
6 FC3-1469-000 ARM, PLATEN, FRONT
7 FC3-1470-000 ARM, PLATEN, REAR
8 FC6-8973-000 ROLLER, PLATEN
9 FC3-1493-000 SPACER, PLATEN, FRONT
10 FC3-1494-000 SPACER, PLATEN, REAR
11 FC3-1509-000 ROLLER, REGISTRATION
12 FC3-1510-000 ROLLER, LEAD
13 FC3-1511-000 ROLLER, DELIVERY REVERSE
14 FC3-1512-000 ROLLER, WHITE
15 FC5-4425-000 CLIP
16 FF3-4633-000 GUIDE, PLATEN, 1
17 FF3-4636-000 LEVER, REGISTRATION SENSOR
18 FG3-4040-000 TENSIONER ROLLER ASSEMBLY
19 FF3-4631-000 GUIDE, REVERSE
20 FL3-3239-000 PAD, SEPARATION [DP]
21 FS4-2746-000 SPRING, COMPRESSION
22 FS2-3885-000 PULLEY, 57T/GEAR, 23T
23 FS4-0645-000 GEAR, 16T
24 FS4-2752-000 SPRING, TENSION
25 FS9-0205-000 LABEL, GREEN
26 FS2-1708-000 BUSHING
27 FS2-1709-000 BUSHING
28 FS2-1710-000 BUSHING
29 FS2-1711-000 BUSHING
30 FS2-3886-000 PULLEY/GEAR
31 FU9-0087-000 PULLEY, 27T
32 FS2-9567-000 SCREW, M3X6
33 FS2-9569-000 SCREW, M3X10
34 FS4-0644-000 GEAR, 16T
35 FS4-0646-000 GEAR, 19T
36 FS4-0647-000 GEAR, 25T
37 FS4-0648-000 GEAR, 23T
38 FS4-0649-000 DIAL
39 FS4-0650-000 GEAR, 31T
40 FS4-0651-000 GEAR, 14T
41 FS4-0652-000 GEAR, 15T
42 FS4-0653-000 GEAR, 18T
43 FS4-0659-000 GEAR, 54T/39T
44 FU9-0090-000 GEAR, 33T
45 FS4-2744-000 SPRING, TENSION
46 FS4-2745-000 SPRING, TORSION
47 FS4-2753-000 SPRING, TORSION
48 WG8-5696-000 PHOTO INTERRUPTER, TLP1243 PI6, PI7, PI8, PI10, PI11
49 FK2-9425-000 MOTOR, STEPPING M1, M2
50 XF2-1607-240 BELT, TIMING
51 FS2-9570-000 SCREW, M4X7
52 FS4-2749-000 SPRING, TENSION
53 FC3-1568-000 SPRING, LEAF
54 XF2-1611-740 BELT, TIMING
55 FS2-9574-000 SCREW, M3X8
56 FS9-0204-000 LABEL, JAM CLEARING OPERATION
Fig.B41 FM4-3442-000 PAPER FEEDER ASSEMBLY DADF-AB1 MODEL

----------------
