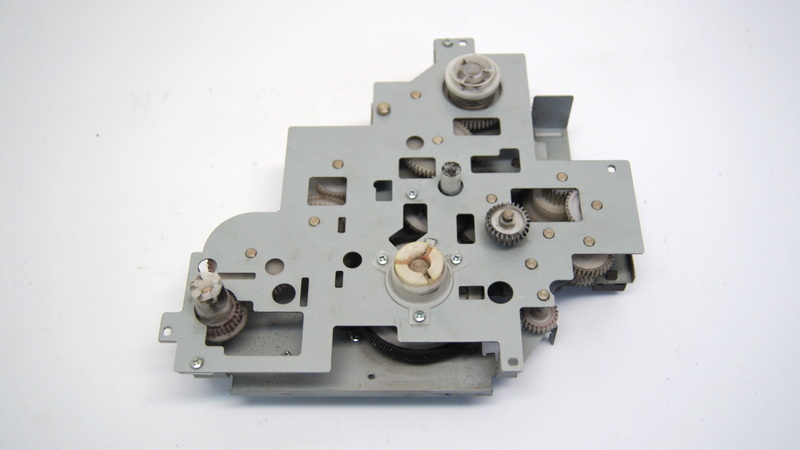

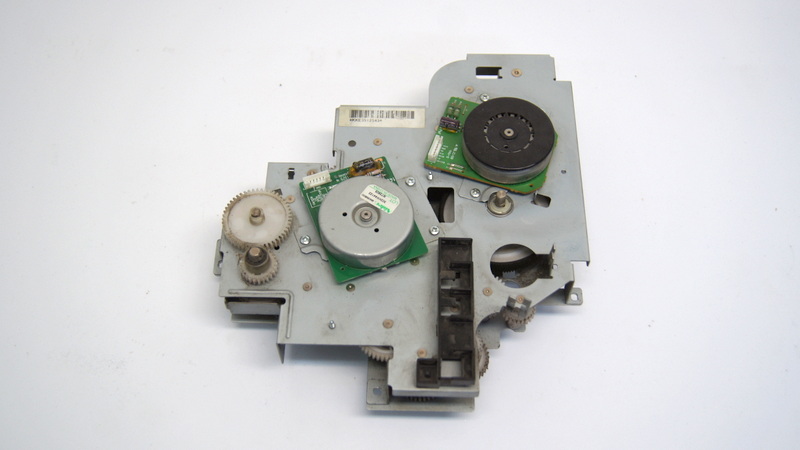

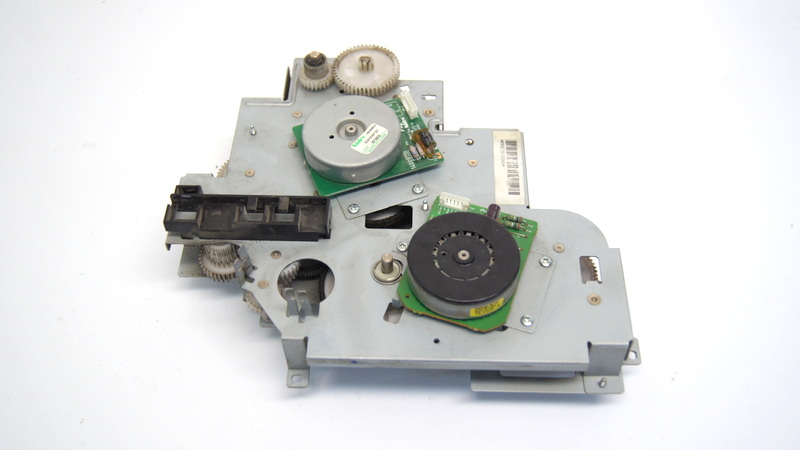

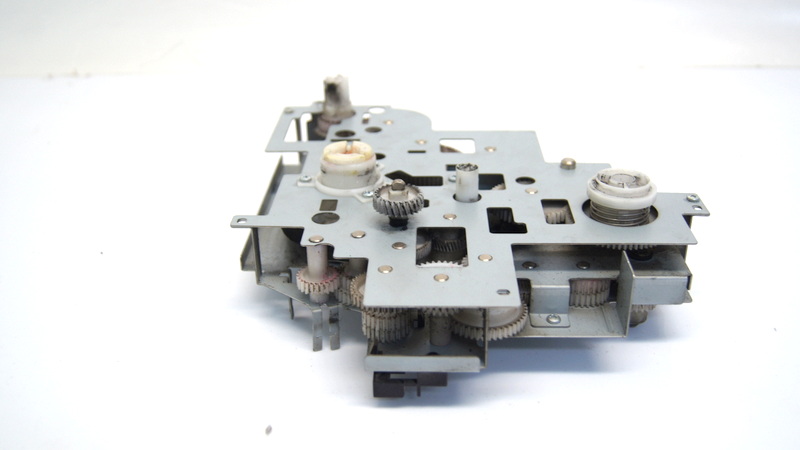

Узел привода 2 KKE0408939 для Kyocera Mita TASKalfa-180/ 181/ TASKalfa-221/ TASKalfa-220 (Код: 90234)

Редуктор KKE0408939 для Kyocera Mita TASKalfa- 180 181/ TASKalfa-221/ TASKalfa-220

DNQ04M12W19A | 302KK44122

Ref. Партс код Наименование Примечание
1 302KK39630 PLATE SHIELD DRIVE 2KK39630
2 2C927210 SENSOR 248NL1 2C927210
3 302KH46170 WIRE CONTAINER 2KH46170
4 7YZM610010++H01 ACCESS.SADDLE YZ042990
5 2C922080 GEAR 60 2C922080
6 2C922170 COUPLING CONT P 2C922170
7 2C922230 GEAR 29 FIX JOINT 2C922230
8 2C922260 SPRING CONT P 2C922260
9 2FT22100 SPRING DRUM COUPLING 2FT22100
10 2FT22160 BEARING 6-15-17 2FT22160
11 302FT22200 SPACER COUPLING 2FT22200
12 302H024370 BUSH 6 EW 2H024370
13 302H031320 POSITIONING BUSH DRUM 2H031320
14 302KK06050 TORQUE LIMITER 340 2KK06050
15 302KK31010 PLATE MAIN DRIVE A 2KK31010
16 302KK31020 PLATE MAIN DRIVE B 2KK31020
17 302KK31050 PLATE MAIN DRIVE C 2KK31050
18 302KK31060 SHAFT COUPLING 2KK31060
19 302KK31070 SHAFT CONT DRIVE A 2KK31070
20 302KK31080 SHAFT CONT DRIVE B 2KK31080
21 302KK31110 GEAR DRUM Z137R 2KK31110
22 302KK31140 GEAR DLP Z26L 2KK31140
23 302KK31160 GEAR MAIN Z37L-Z31 2KK31160
24 302KK31170 GEAR MAIN Z46-Z23 2KK31170
25 302KK31180 GEAR MAIN Z40-Z24 2KK31180
26 302KK31190 GEAR MAIN Z36-Z24 2KK31190
27 302KK31200 GEAR MAIN Z29 2KK31200
28 302KK31210 GEAR MAIN Z29-Z24 2KK31210
29 302KK31220 GEAR MAIN Z23 2KK31220
30 302KK31230 GEAR FUSER Z47-Z27 2KK31230
31 302KK31240 GEAR FUSER Z61-Z35 2KK31240
32 302KK31250 GEAR FUSER Z64-Z36 2KK31250
33 302KK31260 GEAR FUSER Z58 2KK31260
34 302KK31370 MOUNT PI 2KK31370
35 302KK31460 GEAR CONT Z43 2KK31460
36 302KK31470 GEAR CONT Z25 2KK31470
37 302KK31480 GEAR CONT Z49 2KK31480
38 302KK31490 GEAR CONT Z24 2KK31490
39 302KK31500 GEAR CONT Z39-Z24 2KK31500
40 302KK31520 COUPLING DRUM 2KK31520
41 302KK31530 PLATE MOTOR 2KK31530
42 302KK31540 SPRING FUSER 2KK31540
43 302KK31550 SPRING CONT S 2KK31550
44 302KK31560 GUIDE DRIVE WIRE 2KK31560
45 302KK31590 GEAR DLP Z57R 2KK31590
46 302KK31600 SHAFT DLP DRIVE 2KK31600
47 302KK31610 GEAR MAIN Z53R 2KK31610
48 302KK31620 GEAR CONT Z30 A 2KK31620
49 302KK31630 GEAR CONT Z51 2KK31630
50 302KK31670 GEAR DLP Z80R-Z51L 2KK31670
51 302KK31680 GEAR DLP Z68R 2KK31680
52 302KK31690 GEAR DLP Z37L 2KK31690
53 302KK31740 GEAR CONT Z30 2KK31740
54 302KK94320 PARTS CLUTCH REGIST 30 SP 2KK94320
55 302KK94330 PARTS CLUTCH FEED 30 SP 2KK94330
56 302KK94540 PARTS MOTOR BL W25 SP 2KK94540
57 5MVX111DN003 RING STOPPER /A-49 FEED A4 2A806250
58 G3169000 BEARING 6900ZZNR G3169000
101 7BB000303H +BIND M SCREW 3X3 BB107000
102 7BB700308H +BIND T.T S SCREW 3X8 SR BB105600
103 5MBP2010WXSP SPRING PIN / M2 X 10 S-BLK E0020100

Совместимые модели принтеров:

• Kyocera Mita TASKalfa 181
• Kyocera Mita TASKalfa-221
• Kyocera Mita TASKalfa-180
• Kyocera Mita TASKalfa-220
