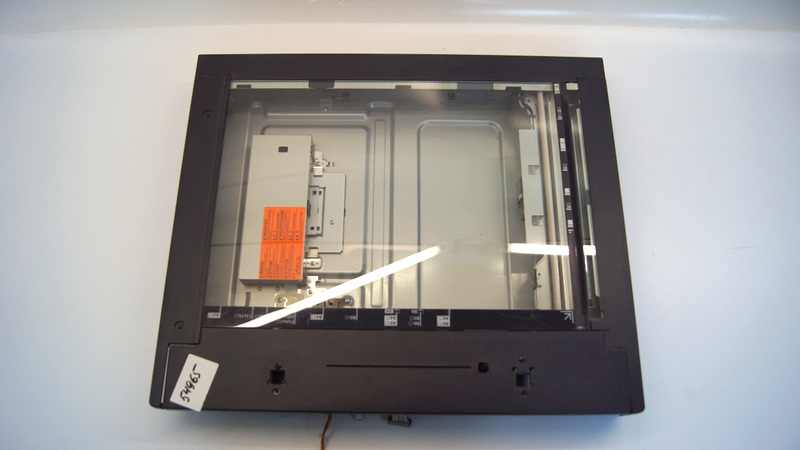

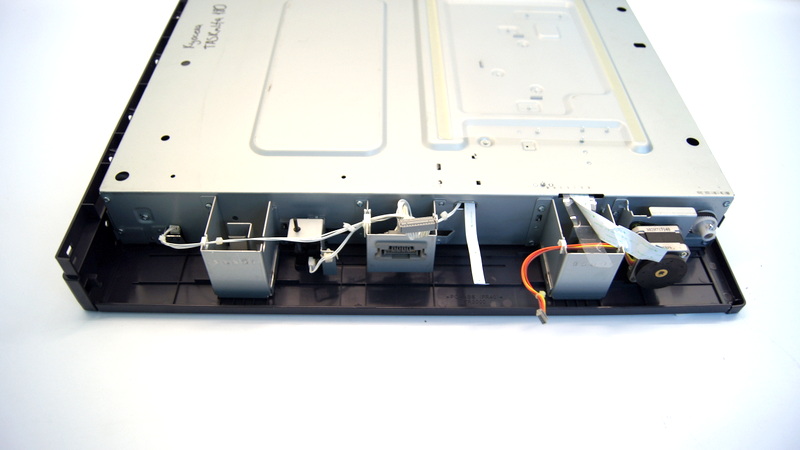

Блок сканера 302KK93070 | 302KK94500 | 302H717140 для Kyocera TASKalfa 180/ 220/ 181/ 221 (Код: 54965)

Блок сканера 302KK93070 | 302KK94500 | 302H717140 для Kyocera TASKalfa 180/ 220/ 181/ 221

Scanner Section 1 PARTS ISU для Kyocera TASKalfa 180 Scanner Section 1 PARTS ISU для Kyocera TASKal 302KK93070 для моделей Kyocera TASKalfa 180
302KK93070 оригинальная деталь kyocera
Scanner Section 1 PARTS ISU для Kyocera TASKalfa 180 Scanner Section 1 PARTS ISU для Kyocera TASKalfa 220 . Scanner Section 1 PARTS ISU для Kyocera TASKalfa 181 . Scanner Section 1 PARTS ISU для Kyocera TASKalfa 221

1 302KK34070 LABEL CONVEYING 2KK34070
2 302KK04150 COVER ISU FRONT 2KK04150
3 302KK04160 COVER ISU LEFT 2KK04160
4 302KK04170 COVER ISU RIGHT 2KK04170
5 302KK04180 COVER ISU REAR 2KK04180
6 2C927210 SENSOR 248NL1 2C927210
7 M2104390 EDGING,EDS-0607L(KITAGAWA) M2104390
8 29812291 CUSHION,CONTACT GLASS 29812291
9 2C912280 CONTACT GLASS ADF 2C912280
10 2C912420 HOLDER GLASS DF 2C912420
11 2C912620 GUIDE RELEASE SWITCH 2C912620
12 2C912640 SHAFT RELEASE SWITCH 2C912640
13 2C912650 SPRING RELEASE SWITCH 2C912650
14 2C912670 SHIELD SCANNER FRAME 2C912670
15 2C912700 SPONGE ORIGINAL SIZE 2C912700
16 2C912710 SHIELD SCANNER FRAME B 2C912710
17 2C912720 SHIELD BASE 2C912720
18 2C912190 STANDARD PLATE SHADING 2C912190
19 2C912250 CONTACT GLASS 2C912250
101 7BB200308H +BIND T.T P SCREW 3X8 BB105660
102 7BB100306H1 +BIND T.T S SCREW 3X6 BB105820
103 7BB782308H +TP-FLAT T.T S SCREW 3X8 SR(BLACK) BB111300
104 7BB782410H +TP-FLAT T.T S SCREW 4X10 SR(BLACK) BB111310
A01 302KK94500 PARTS CONTACT GLASS(I) 2KK94500
A01 302KK94490 PARTS CONTACT GLASS( C) 2KK94490

1 302KK39650 PLATE SHIELD ISU R 2KK39650
2 2C927090 SENSOR ORIGINAL 2C927090
3 302KK46120 FFC INVERTER 2KK46120
4 302KK46020 WIRE DP 2KK46020
5 302KK94410 PARTS LAMP INVERTER SP 2KK94410
6 302KK46190 FFC CCD 2KK46190
7 5FNXGP1A73A++02 PT.SENSOR GP1A73AJ00/ BK 2DC27180
8 7YZM210005++H01 ACCESS.EDGING YZ037990
9 M2104390 EDGING,EDS-0607L(KITAGAWA) M2104390
10 302KK02320 PIN ISU 2KK02320
11 302KK02390 SPRING ISU LOW 2KK02390
12 2BC06910 STOPPER 6 2BC06910
13 2BC06980 STOPPER 5 2BC06980
14 2BC12190 SPRING,MIRROR HOLDER 2BC12190
15 2C905160 LABEL GLASS CAUTION 2C905160
16 2C912110 REFLECTOR SCANNER 2C912110
17 2C912150 RETAINER WIRE 2C912150
18 2C912160 GUIDE FFC B 2C912160
19 2C912260 BELT SCANNER 2C912260
20 2C912310 GEAR Z18/39 2C912310
21 2C912320 GEAR Z36 2C912320
22 2C912350 WIRE SCANNER BLACK 2C912350
23 2C912360 WIRE SCANNER GRAY 2C912360
24 2C912680 PULLEY SCANNER 2C912680
25 2DC12230 SLIDER SCANNER 2DC12230
26 302C912131 ADJUSTING PLATE B 2C912131
27 302C912302 MOTOR PLATE SCANNER 2C912302
28 302C912331 SHAFT MOTOR DRIVE 2C912331
29 302GR17180 PIN SCANNER RETAINING 2GR17180
30 302H017120 PULLEY LEFT FRAME 2H017120
31 302H017180 PULLEY SCANNER 2H017180
32 302H024360 BUSH 8 EW 2H024360
33 302H717140 MOTOR SCANNER 2H717140
34 302H717250 DRUM PULLEY 2H717250
35 302KK94220 PARTS LAMP SCANNER SP 2KK94220
36 302KK17320 MIRROR A 2KK17320
37 302KK17330 MIRROR B 2KK17330
38 302KK17430 GROUND COVER ISU 2KK17430
39 5MVX111DN003 RING STOPPER /A-49 FEED A4 2A806250
40 302KK93070 PARTS ISU 2KK93070
101 7BB700308H +BIND T.T S SCREW 3X8 SR BB105600
102 7BB100306H1 +BIND T.T S SCREW 3X6 BB105820
103 7BB606308H +PAN M SCREW WITH SW W 3X8 R BB105280

----------------
Предназначено для работы в следующих моделях kyocera:
Kyocera TASKalfa 180
Kyocera TASKalfa 220
Kyocera TASKalfa 181
Kyocera TASKalfa 221
