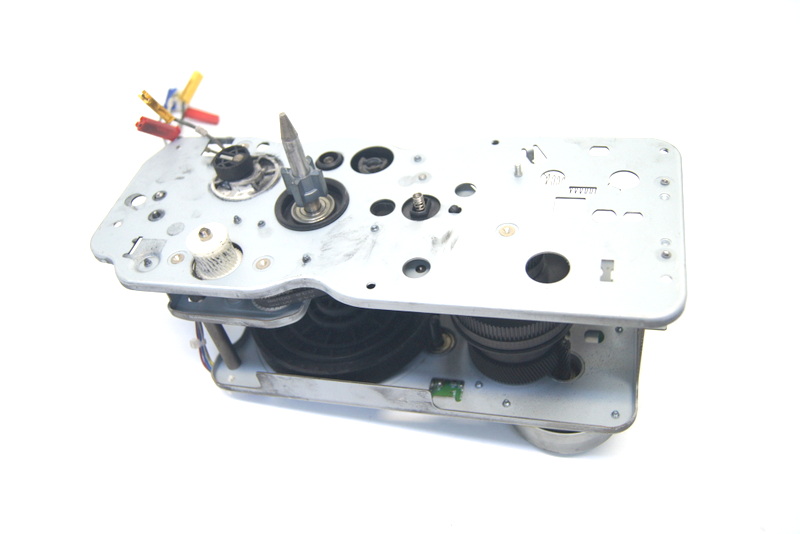

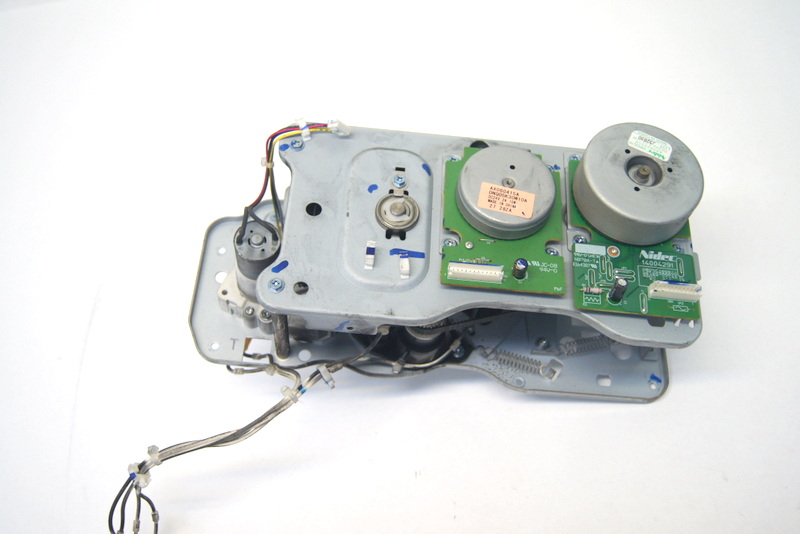

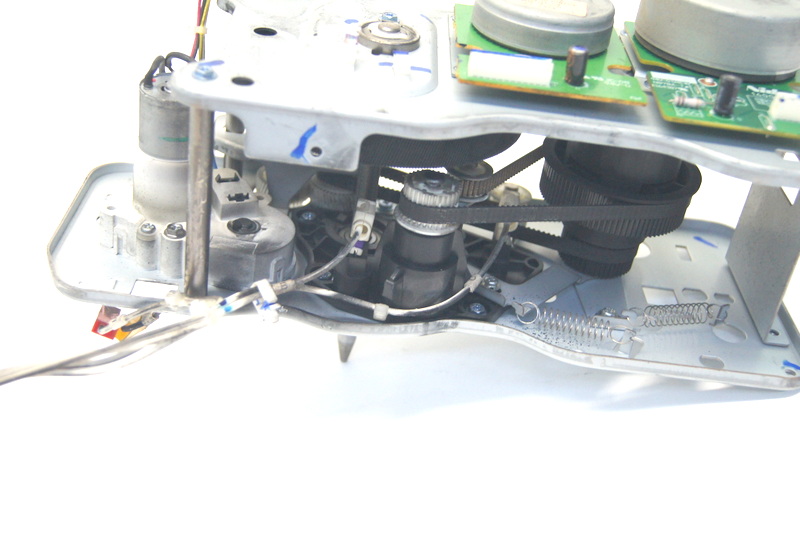

Главный редуктор AX060415 | AX060355 для Ricoh SP8300DN/ MP4002 (Код: 41792)

Главный редуктор AX060415 | AX060355 для Ricoh SP8300DN/ MP4002

4 AX06 0415 Brushless Motor:Drive:Drum:DC 10W
5 AX06 0355 Brushless Motor - DC 11W
6 D0091120 Rear Drive Bracket - Engine
7 B242 1161 Ball Bearing - 8x22x7
8 D009 1121 Ground Plate - Drum
9 AB01 0379 Gear:Drum
10 D009 1113 Drive Unit- Transfer On-Off
11 D0091123 Drive Bracket - Transfer
12 AB01 7752 Gear - 27TZ/42Z
13 D0091148 Collar - 6x18.8mm
14 AB03 0821 Pulley - 31T
15 AB01 0141 Gear - 46Z
16 AB03 0820 Pulley - 31t
17 AA14 5294 Parallel Pin - 2x12mm
18 D0091141 Ground Plate - Drum
19 D0091145 Drum Shaft Holder
20 D0091155 Joint:Development Sleeve:Assy
21 D0091147 Terminal - Development Roller
22 AA06 3432 Spring - Intermediate Drawer
23 D009 1111 Drum Shaft
24 D0091139 Front Drive Bracket - Engine
25 AB01 0140 Gear - 90Z
26 D0091142 Pulley - 48T/90T
27 AA04 3658 Timing Belt - 60s2m300
28 D0091127 Roller - Tightener
29 D0091128 Spring - Tightener
30 D0091135 Tightener Bracket - Development
31 D0091125 Tightener Bracket - Transfer
32 B0041936 Plate - Optical Housing Unit
33 D0093831 Receptacle Housing - Transfer
34 D0093832 Receptacle Terminal - Transfer

----------------
Предназначено для работы в следующих моделях :
Ricoh MP4002
Ricoh MP4002SP
Ricoh MP5002
Ricoh MP5002SP
Ricoh SP8300DN
---------------+//
Деталь с разбора. Работоспособность проверена. Гарантия при установке в сервисном центре - неделя.
