Блок сканера с ADF для M0261791 | M3644617 | M3644321 для Ricoh SP5200S/ SP5210SF/ SP5210SR (Код: 44799)

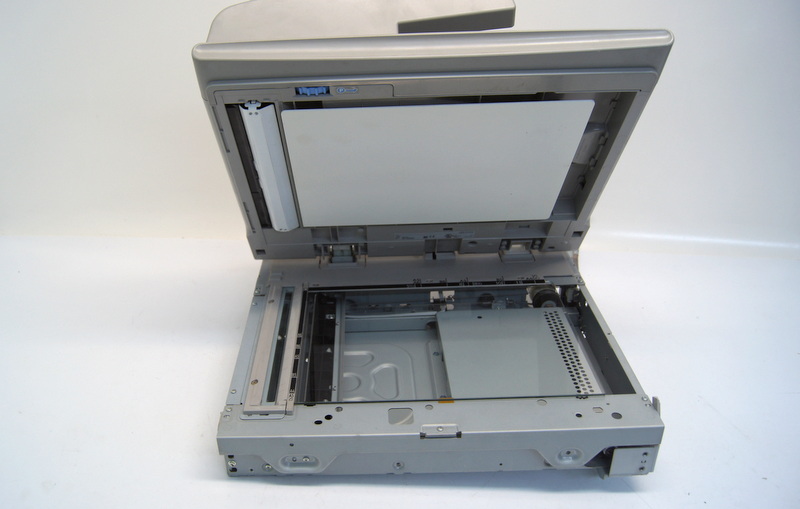

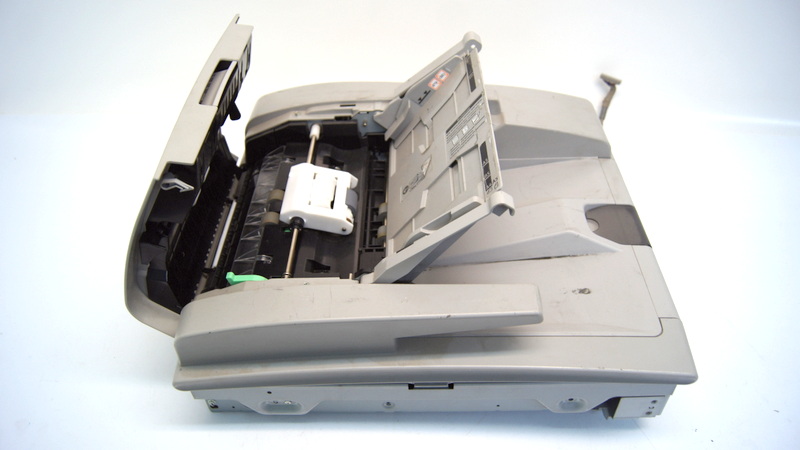

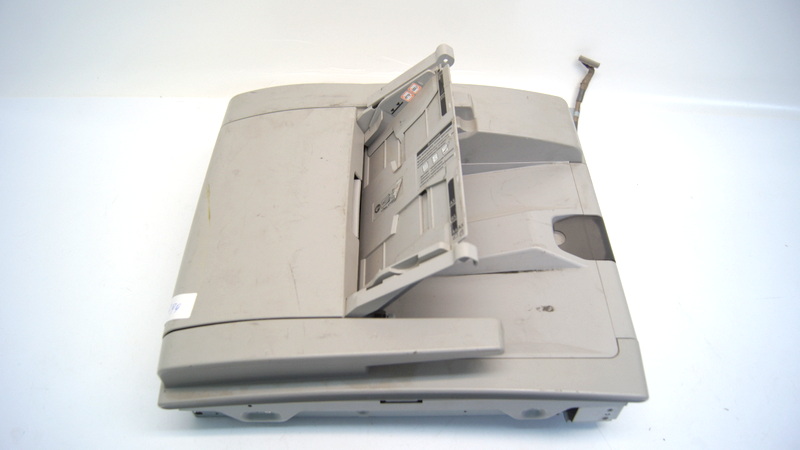

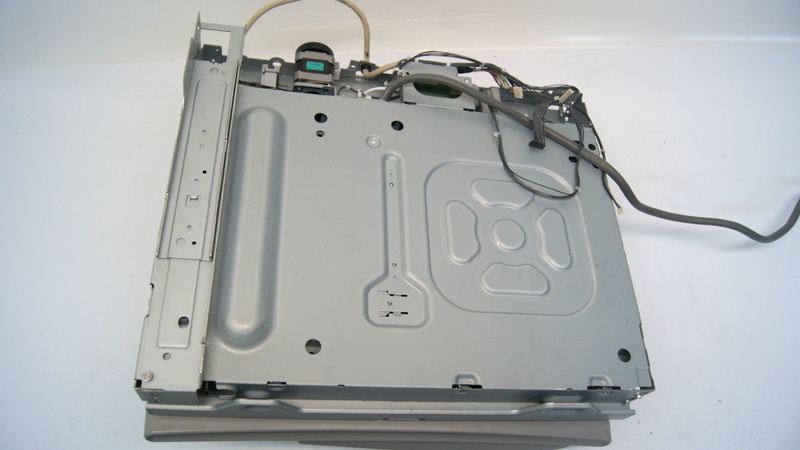

Блок сканера с ADF для M0261791 | M3644617 | M3644321 для Ricoh SP5200S/ SP5210SF/ SP5210SR

1 M364 4521 Cover: Front
2 M364 1386 Cushion: Pressure Plate
3 M364 1387 Bracket: Pressure Plate
4 M364 4821 Tape: Pressure Plate: Left
5 M364 4811 Pressure Plate
6 M364 1381 Holder: Pressure Plate: Right
7 M364 4823 Tape: Pressure Plate
8 M364 4536 Tray: Auxiliary
9 M364 4531 Cover: Right
10 M364 4511 Cover: Rear

1 M364 4611 Cover: Paper Feed
2 M364 4626 Feeler: Original Sensor
3 M364 4622 Torsion Spring: Grip
4 M364 4621 Grip: Cover: Paper Feed
5 M364 4617 Guide Plate: Cover: Paper Feed
6 AA14 3788 Pin: Guide Plate: Paper Feed
7 M364 4643 Compression Spring: Driven Roller: Pull Out
8 M364 4648 Plain Shaft Bearing: M4
9 M364 4642 Roller: Driven: Short
10 M364 4641 Shaft: Driven
11 AA08 2101 Bushing - 6x10x6
12 AA13 2208 Spacer - M6
13 M364 2124 Compression Spring: Paper Feed Unit
14 M364 2110 Shaft: Paper Feed Unit
15 M364 2132 Torque Limiter: Pickup
16 M364 2151 Holder: Pickup
17 M364 2143 Torsion Spring: Paper Stopper
18 M364 2141 Arm: Paper Stopper
19 M364 2163 Timing Belt: 40S2M130
20 M364 2123 Timing Pulley: Pickup: Drive
21 M364 2121 Feed Roller
22 M364 2162 Timing Pulley: Pickup
23 B872 2529 Collar: Pickup
24 AF03 0363 Pickup Roller
25 M364 2161 Shaft: Pickup
26 M364 2146 Paper Stopper
27 M364 2144 Link: Paper Stopper

1 M364 6041 Decal: Side Fence
2 M364 4741 Side Fence: Inner Back
3 M364 4742 Side Fence: Front
4 M364 4736 Cushion: Side Fence: Small
5 A334 4678 Rack Shield Mylar
6 M364 4711 Original Table
7 M364 4751 Extension Tray
8 M364 6031 Decal: Original Scale: Inner Back
9 M364 6032 Decal: Original Scale: Front
10 AA13 2225 Spacer: DIA10xDIA15x1
11 M364 4743 Compression Spring: Side Fence
12 M364 4744 Gear: Side Fence
13 M364 4724 Spring Plate: Reverse: Pressure
14 M364 3232 Exit Roller: Driven

1 M364 1317 Supporting Plate: Left Lower
2 M364 1321 Lever: Driven: Scanning
3 M364 1323 Compression Spring: Scanning: Driven
4 M364 1342 Roller: Scanning: Driven: Short
5 M364 4641 Shaft: Driven
6 M364 1326 Guide Plate: Scanning: Front Lower
7 M364 1327 Sheet: Scanning: Front Lower
8 M364 4648 Plain Shaft Bearing: M4
9 M364 1335 Exit Roller: Driven: Assy
10 M364 6051 Decal: Lever: Knob

1 M364 2222 Guide Plate: Open And Close
2 H310 1360 Pad: Pickup
3 M364 2311 Guide Plate: Paper Feed
4 M364 2314 Lever: Pressure Release: Separation
5 M364 2313 Tension Spring: Pressure Release
6 M364 3311 Guide Plate: Scanning
7 M364 2315 Cushion: Separation
8 M364 2216 Holder: Friction Pad: Assy
9 A222 2724 External Circlip - MM8
10 B789 4257 Pulley Flange
11 M364 2213 Compression Spring: Separation
12 M364 3111 Transport Roller: Pull Out
13 M364 3141 Transport Roller: Reverse
14 M364 3421 Gate Pawl: Reverse
15 B789 3716 Tension Spring - Gate Pawl
16 M364 4411 DC Solenoid: Gate Pawl: Reverse
17 M364 3116 Timing Pulley: Pull Out
18 AA08 2101 Bushing - 6x10x6
19 D366 4242 Torque Limiter - 24T

1 M364 3416 Guide Plate: Reverse
2 M364 3412 Feeler: Reverse
3 M364 3321 Spring Plate: Guide: Exposure Glass
4 AA08 2101 Bushing - 6x10x6
5 M364 5725 Harness: Registration: Connecting
6 GW01 0007 Photo Reflection Sensor: Exit
7 M364 3216 Bracket: Sensor: Registration
8 M364 3218 Bracket: Sensor: Reverse
9 AW02 0141 Photointerruptor
10 M364 3211 Guide Plate: Transport
11 M364 3212 Discharge Brush: Exit: SUS
12 M364 3131 Exit Roller
13 M364 3136 Knob: Misfeed Removal
14 M364 1227 Hook: Guide: Exposure Glass
15 M364 3241 Guide Plate: Reverse: Upper
16 M364 1322 Compression Spring: Scanning: Driven
17 M364 4648 Plain Shaft Bearing: M4
18 M364 3232 Exit Roller: Driven
19 M364 3121 Transport Roller: Scanning
20 M364 3221 Spring Plate: Earth: Exit

1 M364 4353 Bracket: DC Fan Motor
2 AX64 0170 Fan Motor - MM60 DC24V
3 M364 5720 Harness: Sensor: Main
4 M364 5735 Harness: DC Stepper Motor: Transport
5 M364 5022 PCB: Main Control
6 M364 5805 Harness: Interface: Assy
7 AW02 0141 Photointerruptor
8 G570 1225 Sensor Shielding Plate
9 M364 5751 Guide: Harness

1 M364 1221 Hinge: Right
2 M364 1211 Hinge: Left
3 M364 4121 Timing Pulley: Slow Down: Paper Feed
4 B700 3125 Timing Belt: B40S2M232
5 AX21 0103 Magnetic Clutch: 0.25N
6 M364 4131 Timing Belt: B40S2M160
7 M364 4122 Gear: Timing Pulley: Slow Down: Paper Feed
8 M364 4124 Gear: Timing Pulley: Coupling
9 AA04 3319 Timing Belt - 40S2M156
10 M364 4211 Timing Pulley: Slow Down: Transport
11 AA04 3603 Timing Belt: B40S2M128
12 M364 4245 Timing Belt: B80S1.5M236
13 M364 4231 Tightener: Transport: Assy
14 B789 4332 Pulley - 34T
15 M364 4244 Tension Spring: Tightener: Transport
16 AA08 2101 Bushing - 6x10x6
17 M364 4251 Shaft: Electromagnetic Clutch
18 M364 4321 Stepper Motor: DC 0.94W
19 M364 4341 Tension Spring: Motor
20 M364 4311 Bracket: Motor

1 M052 1766 Cover: Scanner: Upper: NA/AA
1 M052 1765 Cover: Scanner: Upper: EU
2 M052 1772 Cover: Scanner: Rear: NA/AA
3 M026 1745 Holder: Hinge: Left
4 M026 1732 Holder: Hinge: Right
5 B390 1759 Shaft: Scale
6 M026 1711 Scale: Main
7 M026 1714 Scale: Left: EU
8 AC01 2069 Exposure Glass
9 M052 1756 Cover: Scanner: Right: NA/AA
9 M052 1755 Cover: Scanner: Right: EU
10 M026 6890 Decal: Caution: Original: English
11 M052 2020 Cover: Scanner: Front
12 M052 6641 Model Name Plate: M052: RIC
12 M052 6643 Model Name Plate: M052: GES: NA/AA
12 M052 6645 Model Name Plate: M052: LAN
12 M053 6641 Model Name Plate: M053: RIC
12 M054 6641 Model Name Plate: M054: RIC
12 M054 6643 Model Name Plate: M054: GES
12 M054 6645 Model Name Plate: M054: LAN
13 M052 1590 Bracket: Supporter: Operation Panel: A
14 M052 1762 Cover: Scanner: Left: NA/AA
14 M052 1761 Cover: Scanner: Left: EU
15 M026 1700 Scale: Inner Back: Printing
16 M026 1713 Scale: Inner Back

1 M026 1791 Inner Cover: Scanner
2 M026 1712 Exposure Glass: Document Feeder: Assy
3 G570 1225 Sensor Shielding Plate
4 5442 1924 Exposure Glass Cushion
5 D039 1751 Holder: Exposure Glass
6 AW02 0145 Photointerruptor: Flat
7 B154 1826 Cover: Sensor: Aks

1 M026 1771 Carriage: No.2: Assy
2 M026 1778 Guide: FFC
3 G404 2810 Spring Plate - 2Nd Mirror
4 B238 1807 Pulley
5 AC03 0178 Mirror: No.2
6 M026 1800 Carriage: No.1: Assy
7 M026 1814 Sheet: Guide: Harness: LED-D
8 M026 1812 Guide: Harness: LED-D
9 M026 1813 Clamp: Wire
10 M026 1805 Reflector: Scanner
11 AC03 0177 Mirror: No.1
12 M026 1815 Clamp: Mirror: No.1
13 M026 1802 Illumination Unit: LED-B: Assy

1 B238 1715 Stepper Motor DC3.9V
2 G570 1133 Timing Pulley 73
3 D029 1748 Pulley: Drive Were: Rear: Assy
4 AA08 2144 Bushing - 8x12x7
5 B238 1792 Timing Belt - 157ST1.5-4.0
6 M026 1768 Bracket: DC Stepper Motor
7 M026 5175 PCB: LED-DB
8 M052 5483 Interface Cable: Scanner: LVDS: Assy
9 M026 1723 Bracket: LED-DB
10 M026 1764 Drive Were: DIA1
11 B180 1704 Bracket: Tension
12 AA06 0980 Tension Spring: Tension: 11300MN
13 M026 1762 Shaft: Scanner: Drive
14 M052 5480 Harness: BICU: SBU
15 M052 5481 Harness: BICU: HPS/AKS
16 M026 1751 Holder: Lens: Assy
17 B238 1806 Idler Pulley
18 D029 1749 Pulley: Protection
19 D029 1745 Pulley: Drive Were: Front
20 M052 5486 Clamp: LVDS: BICU
21 AA06 0979 Tension Spring: Tension: 14720MN
22 M026 1721 Guide: Harness
23 M026 5226 Harness: FFC: 11Wick: LED
24 M052 5439 Harness: SMT: Connecting: NA
24 M052 5451 Harness: SMT: EU

----------------
Предназначено для работы в следующих моделях :

Ricoh SP5200S
Ricoh SP5210SF
Ricoh SP5210SR

---------------+//
Деталь с разбора. Работоспособность проверена. Гарантия при установке в сервисном центре - неделя.
